E-Coat Surface Protection
All Montage products are treated with our superior E-Coat process that protects the product with complete coverage inside & out.
Montage Plus
Styles
-
Classic
-
Majestic
-
Genesis
-
Warrior
Style: Majestic

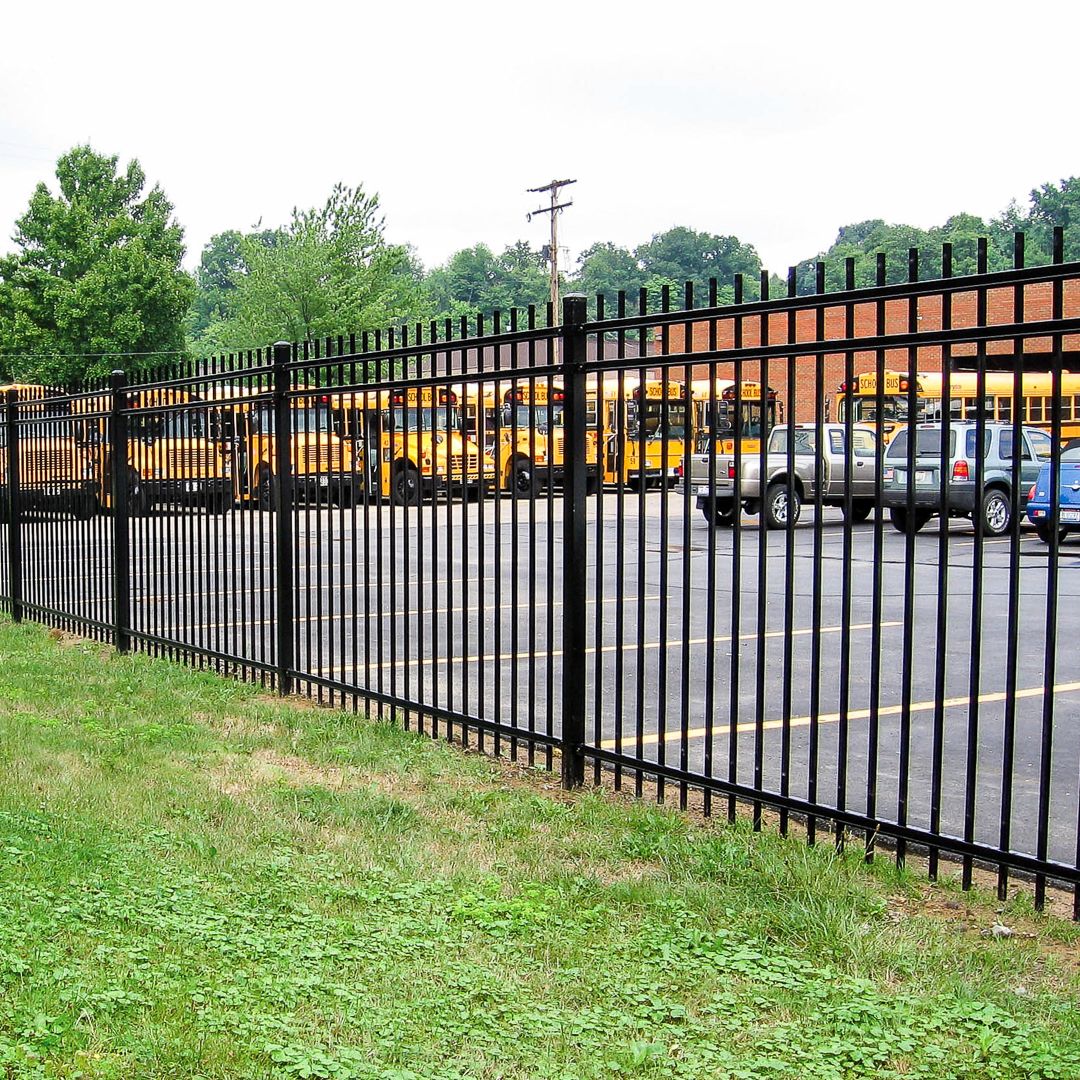

Project: School
ProFusion Welding Technology
Our ProFusion welding creates virtually invisible structural connections at every intersection, for sleek lines and simple installation.
Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
20 Year Warranty
Our Montage products undergoes an 11-stage E-Coat process and is backed by a 20 year warranty.
Pickets: .75"sq x 18ga
Rails: 1.4375" x 1.5" x 14ga
Posts: 2.5"sq x 16ga
Heights: 3', 3 1/2', 4', 5' or 6'
IBC Compliant Configuration:
- 3 rails
- 2.5"sq. x 14 ga. min posts
- All brackets (flat mount and swivel must be thru-bolted)
- For plated posts: 8" x 8" min plates with gussets
Fence Styles
Classic Majestic Genesis Warrior 3 Rail Panels
- Available in 3', 3 1/2', 4', 5' and 6' height
- Standard or flush bottom rail available
- 4" standard picket airspace or 3" Pet, Pool & Play picket airspace
2 Rail Panels
- Available in 3', 3 1/2', 4', 5' and 6' height
- Standard or flush bottom rail available
- 4" standard picket airspace or 3" Pet, Pool & Play picket airspace
Documents
DWG Drawings
PDF Drawings
