Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.

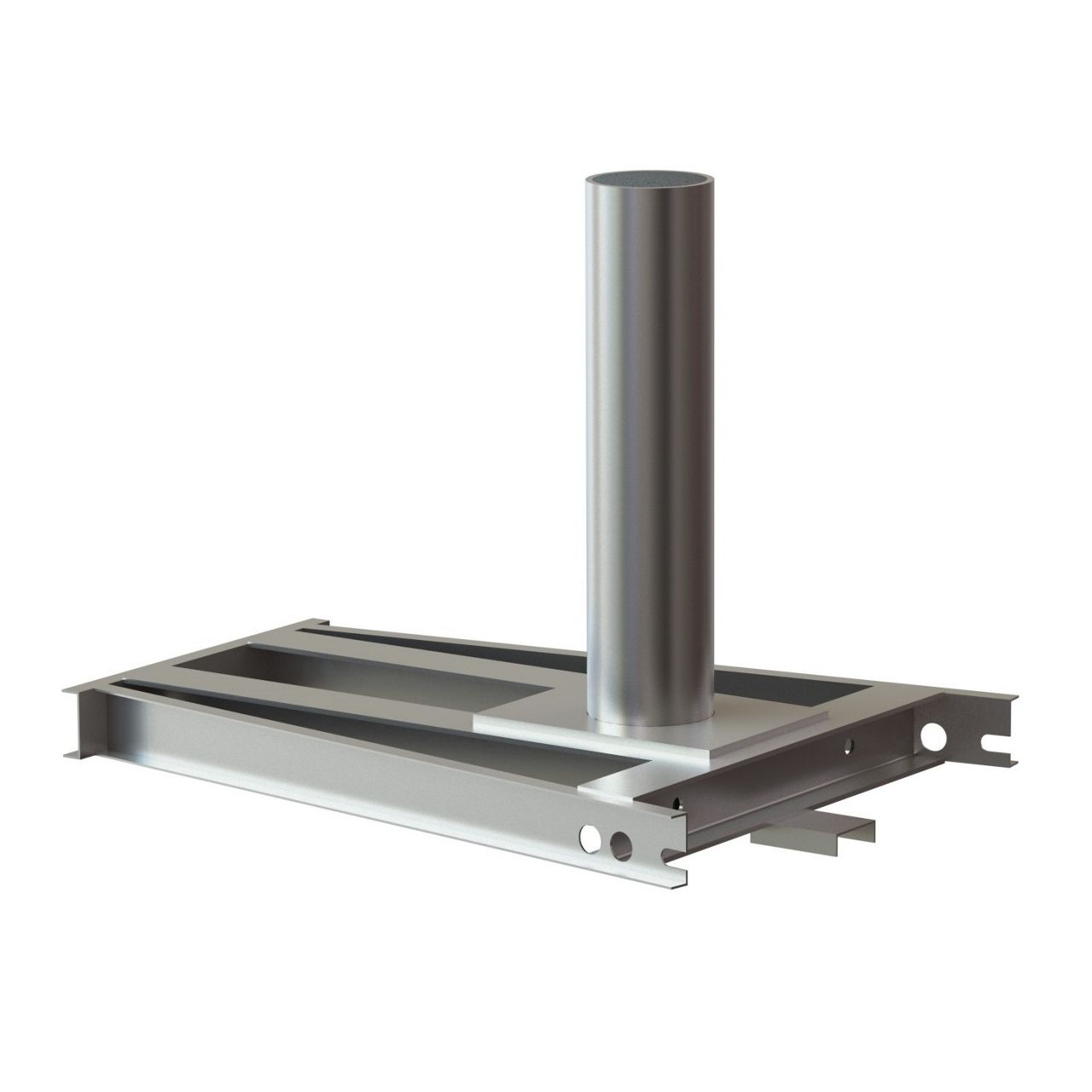

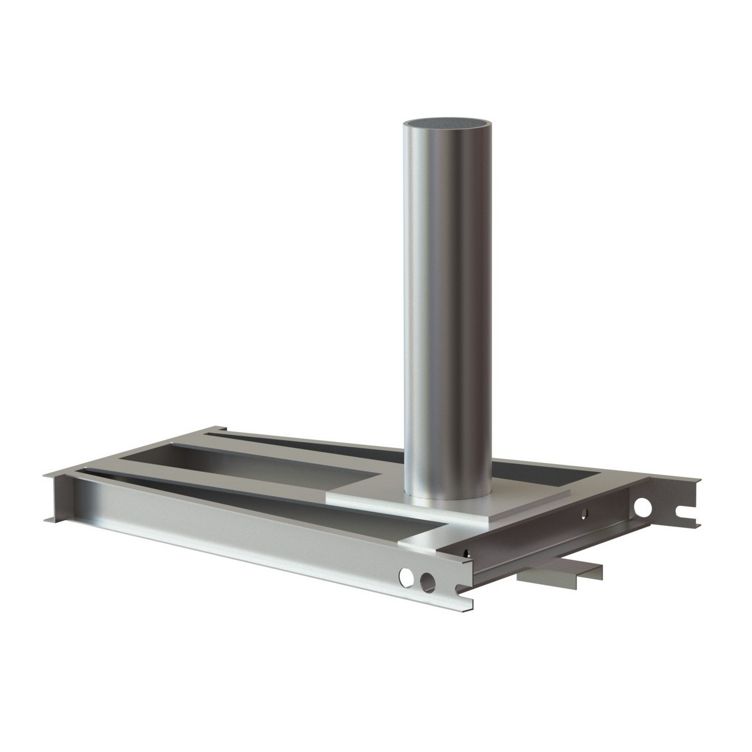

ATLAS M50 Bollard
Patented shallow single bollard with an ASTM M50 (DOS K12) crash rating (15,000 lbs truck traveling at 50 mph). The system is designed for quick and easy installation with only 13″ of excavation required. The bollard assemblies are individually shipped, and no field assembly is required. The assemblies are independent of each other for easy and flexible installation on sloped and curving road/sidewalk, and leveling legs allow for plum and height adjustment on uneven ground surface.

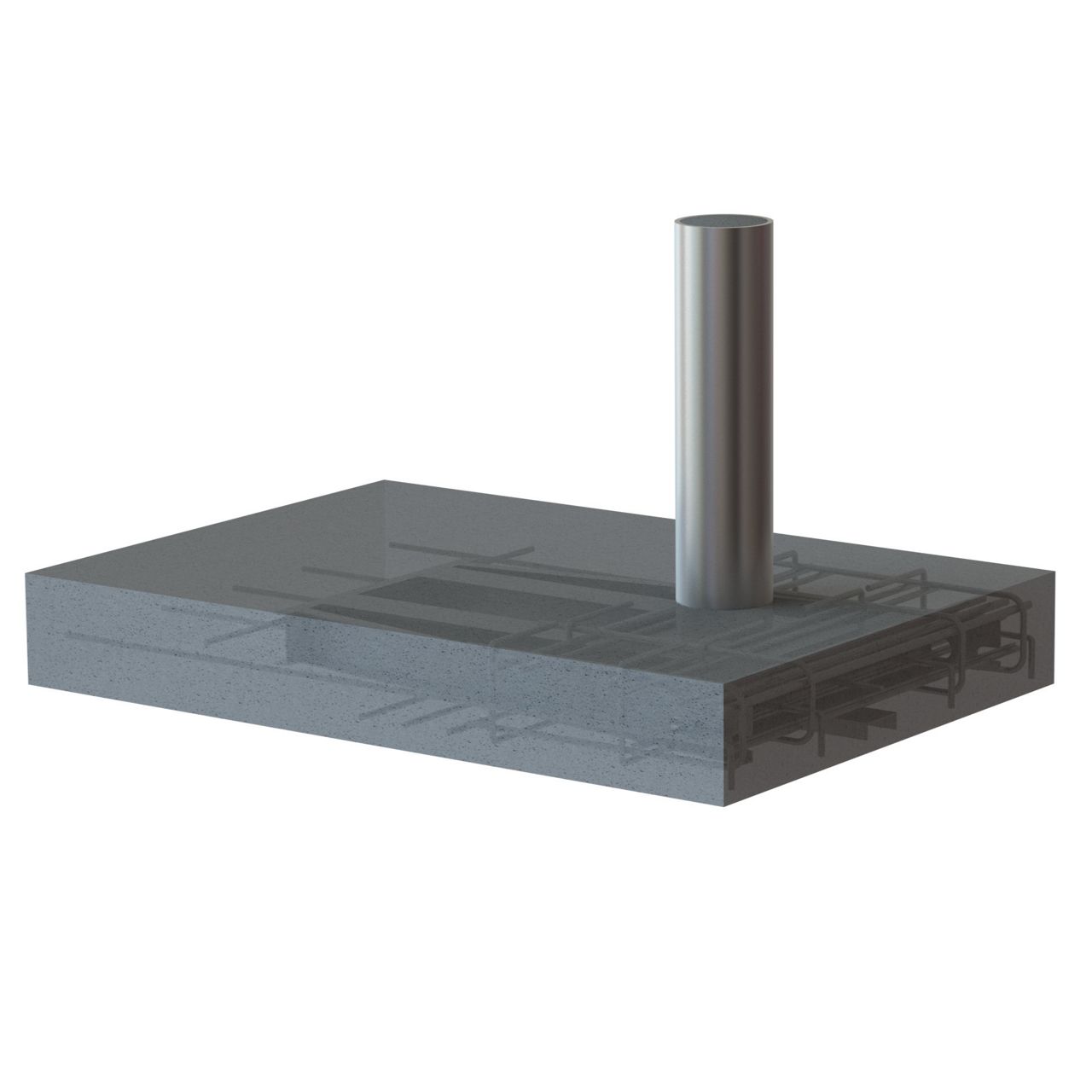

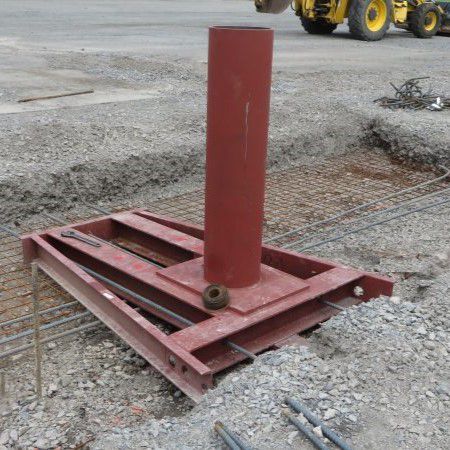

Shallow Mount Installation
Only 13"-14.5" of total excavation required, enabling you to install a crash test certified bollard at a fraction of the depth.
Decorative Sleeves Available
Custom sleeve options and reflective banding available.
Foundation Depth: 13″
Height: 41.75″
Bollard Diameter: 10.75″
Bollard Spacing (center to center): 53" minimum
Bollard Spacing (clearance): 42" minimum
Elevation and Setback Adjustable
Crash Rating
ASTM M50 (15,000 lbs at 30 m/h – 6,800 kg at 50km/h, equivalent to DOS K12)
Crash Tests as a single bollard
