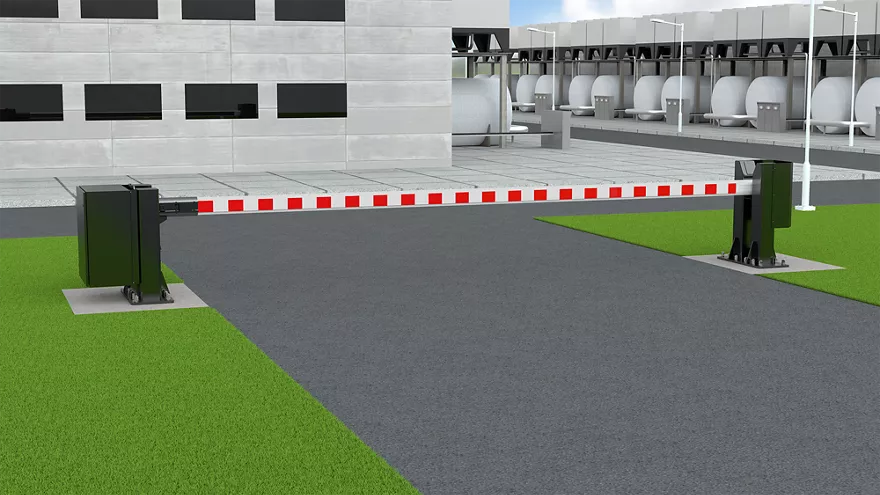

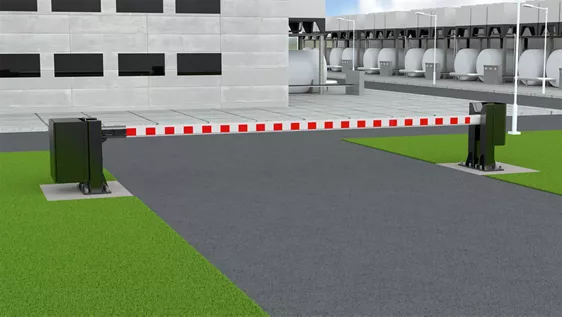

Model 773 M30 Drop Arm Barrier

M30 | Drop Arm Barrier

The Model 773 design provides the lightest operation arm with the greatest energy absorption capability.

Hydraulic: Ideal for access control points with minimal or remote surveillance. Normal operation time 7–15 seconds with Emergency Close Operation (ECO)..

Applications:

Data Centers
Nuclear Facilities
Petro-Chemical Plants
Military and Government
Airports

1 of 3

Crash Rated
This barrier has been crash tested and certified to ASTM F2656, Dept of State and/or other international standards.
Learn More
Hydraulic Power Unit
Ameristar offers top of the line HPU systems with a variety of options for seamless operation of our security products.
Learn More
Optional Traffic Light Available
Add an integrated traffic light with mounting post to the barrier arm for addition traffic control.
Up to 24 Ft. Road Coverage
These barrier arms can span distances at 12 ft. and 24 ft. for anti-ram coverage of larger roadways.

ATMSF2656-23 M30/P1 Crash Rating - 12'-22' Arm

Hydraulic
Foundation: Reinforced rebar cage in 5' x 5' x 4' (1.5m x 1.5m x 1.2m) 4000 PSI concrete
12' Min. opening / 24' Max opening *

Standard Colors**

Black-coated stanchions
White-coated arm with red/white reflective tape

*Available in 2' increments

**Custom colors available

ASTMF2656-23 M30/P2 Crash Rating - 24' Arm

Hydraulic |
Foundation: Reinforced rebar cage in 5' x 5' x 4' (1.5m x 1.5m x 1.2m) 4000 PSI concrete
12' Min. opening / 24' Max opening *

Standard Colors**

Black-coated stanchions
White-coated arm with red/white reflective tape

*Available in 2' increments

**Custom colors available

- Request Product Documentation
- Owners Manual Request

Watch the Crash Test!

Our Model 773 is crash tested to meet an M30/P1 rating.
