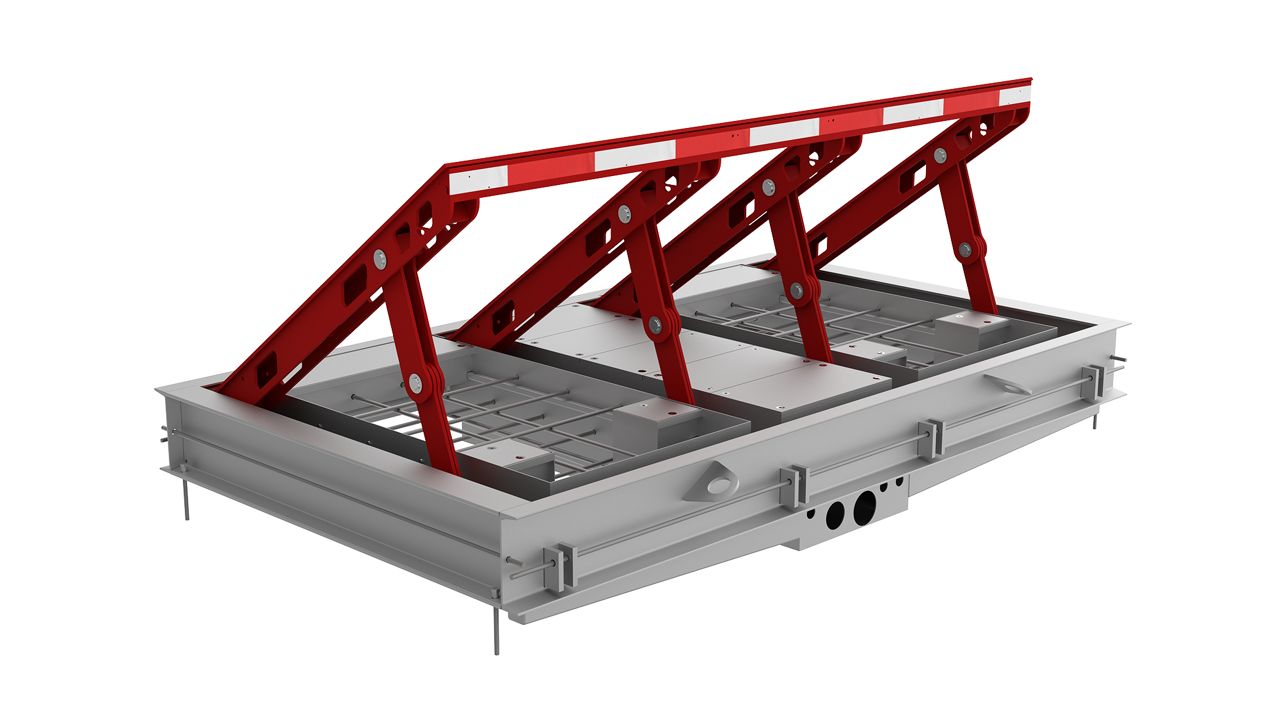

Model 828 Wedge Barrier

Shallow Mount Barrier | M50 P1

The model 828 vehicle barrier is designed to contain a high-speed vehicle impact and prevent that vehicle from entering a restricted access control area.

Model 828 is crash tested to ASTM F2656-15 and achieved a M50 P1 designation capable of stopping a 15,000 lb. (6803.9 kg) vehicle traveling at speeds up to 50 mph (80.5 km/h).

Installation of the crash barrier is simple with its shallow-mount design so there is no need for any major excavation work on existing roads or paved surfaces. Model 828 comes complete with all necessary accesses for drains, hydraulic conduits and electrical services to further ease the installation process.  Internal rebar is factory installed.
