Fiber Rope Technology
Using innovative fiber rope allows for multiple changes in direction and continuous runs of the anti-ram barrier.
Using innovative fiber rope allows for multiple changes in direction and continuous runs of the anti-ram barrier.

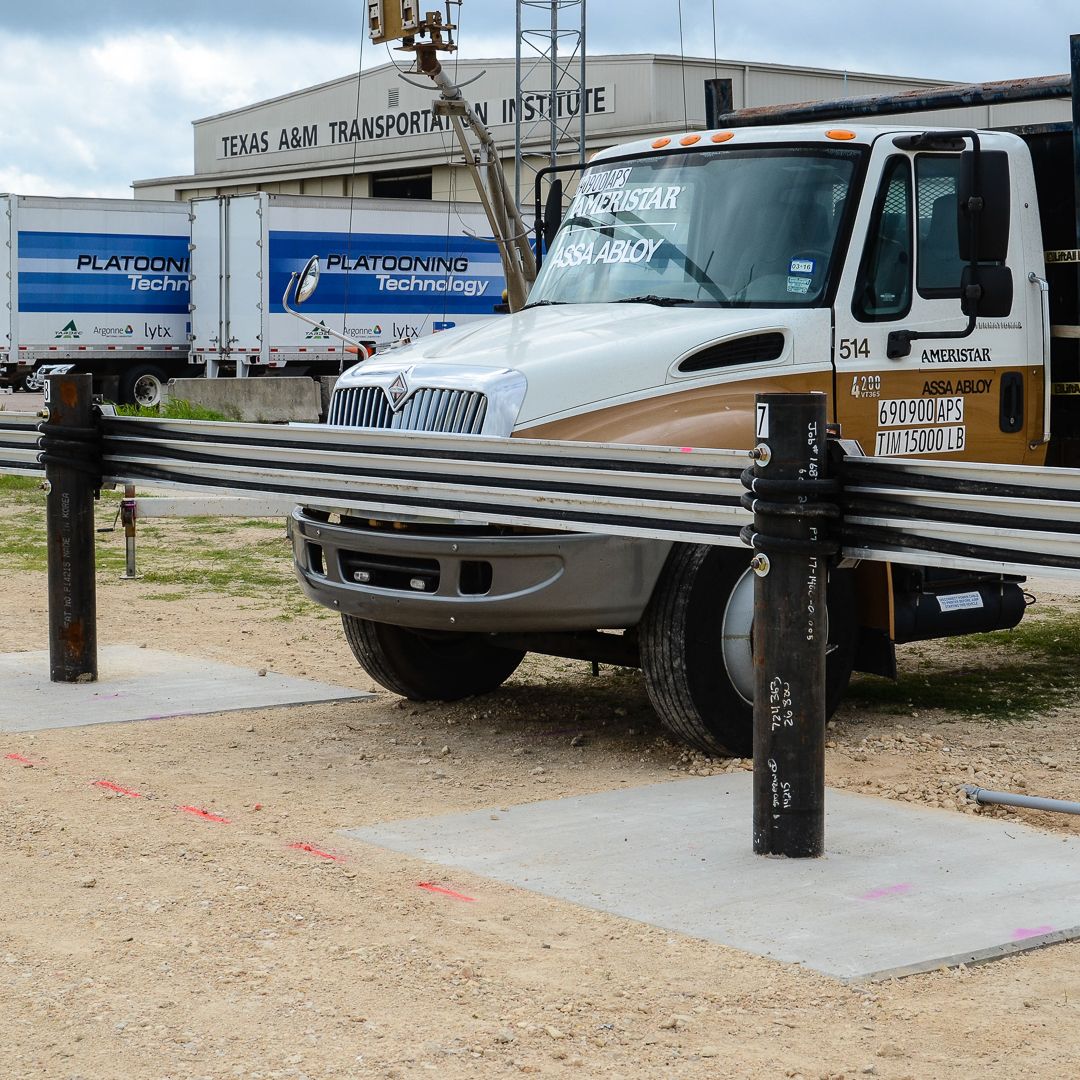

This barrier has been crash tested and certified to ASTM F2656, Dept of State and/or other international standards.
All components of this system are manufactured in the USA and meet the Buy American Act.
Our pre-galvanized steel base material is subjected to an 11-stage process to prepare for a dual top-coat finish.
Rails: 11" x 2.75"
Posts: 8" Diameter
Fiber Rope: 1 5/8" Diameter
Set Depth: 15"
Post Distance: 16' on centers

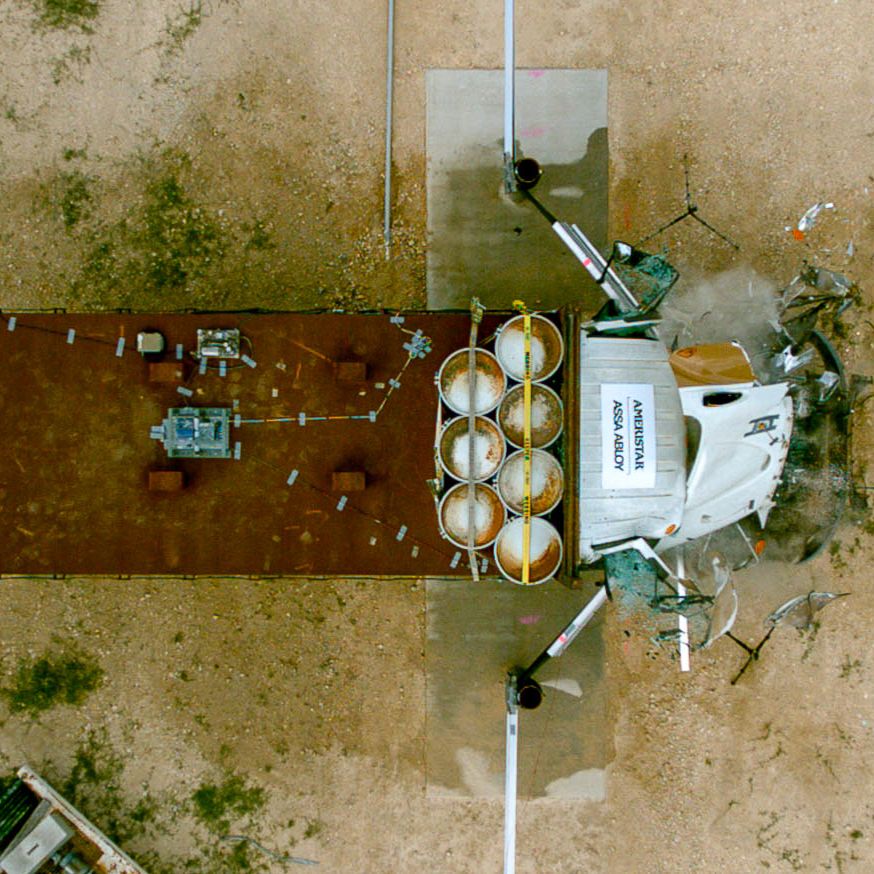

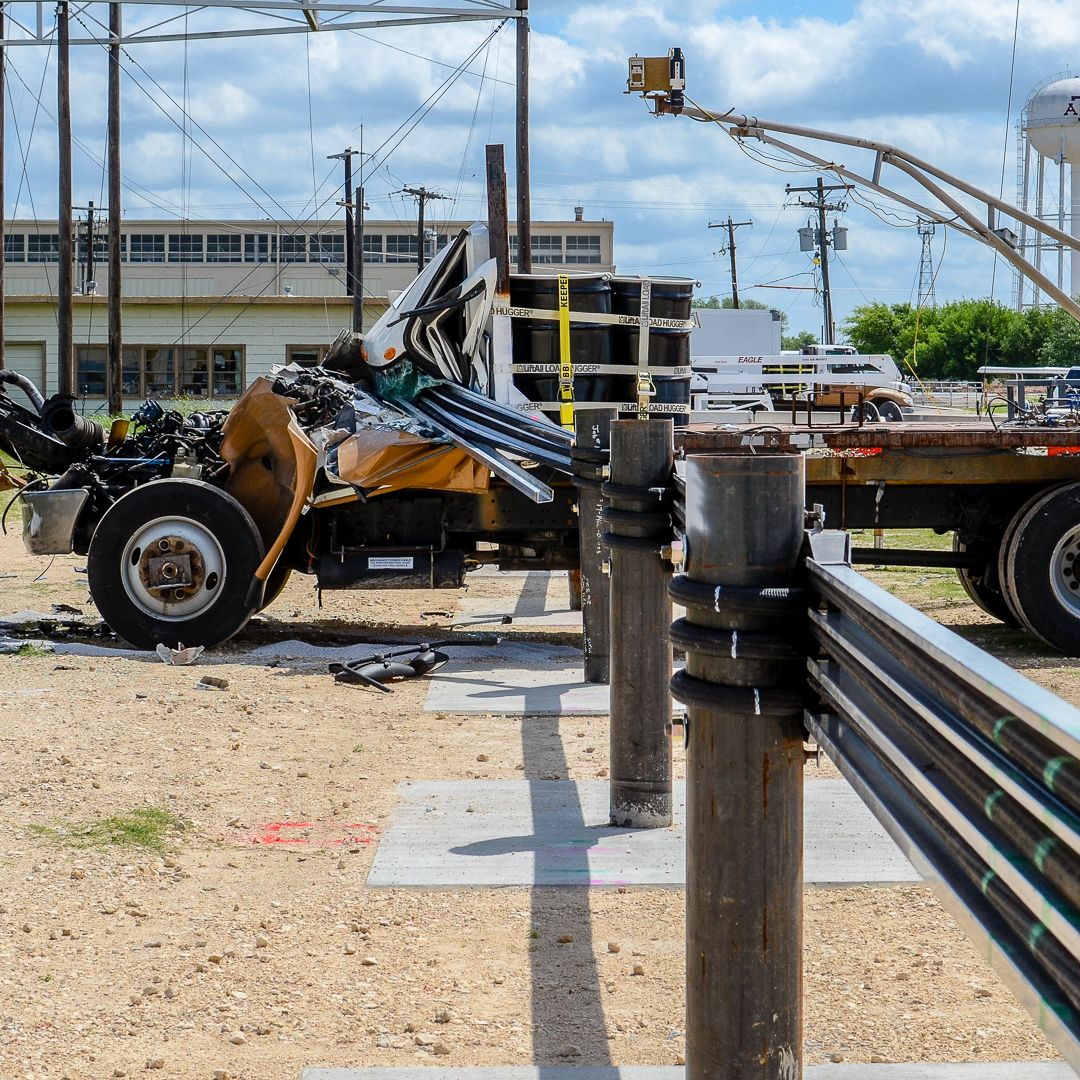

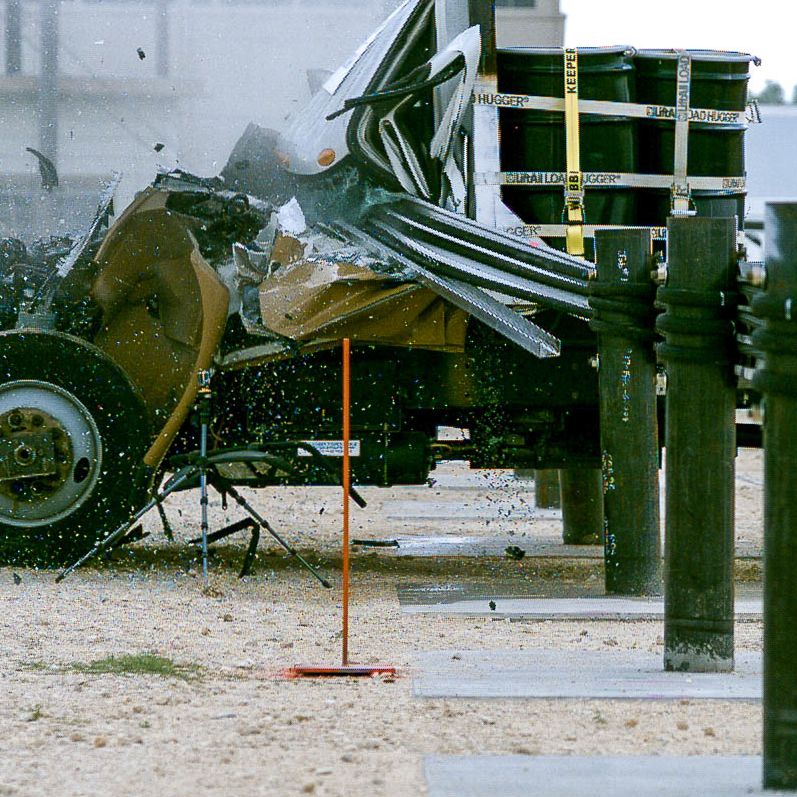

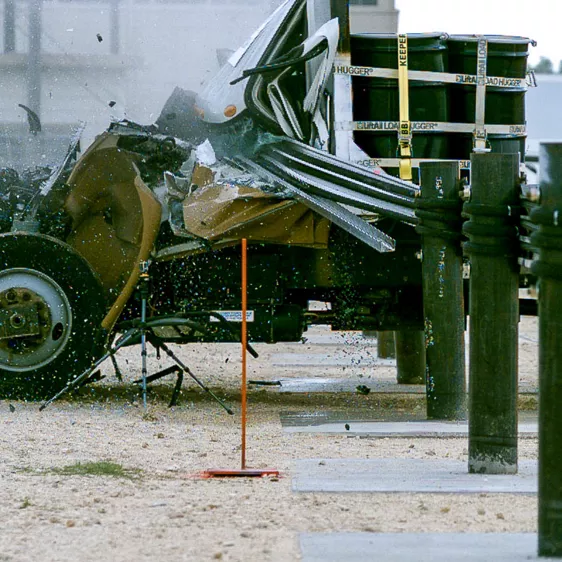

Crash Ratings
M50/P2 Tested | M30/P1 Tested |
